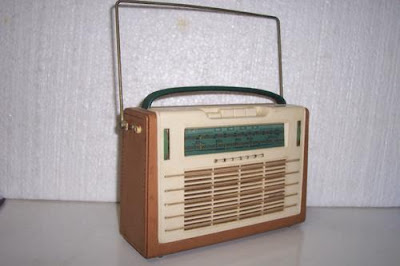

ANTIGO RADIO 3 FAIXAS PHILIPS HOLANDÊS DOADO PELO TÉCNICO BADÙ DA CIDADE DE IPIRÁ PARA O MUSEU DO RADIO DE SERRINHA BA ,FICHA TECNICA DE ORIGEM ABAIXO,Radio made in Holland in approx. 1957/1960 - 6 Philips germanium transistors - has small pcb and all parts are on it, rest of plastic case is empty and serves as acoustic cabinet - nice big speaker - has LW / MW - needs 5 'C' cells. Philips; - Eindhoven: L4X25T [Radio] ID = 204976 933x700
A 1962 Philips L4X25T ... in need of some restoration.
Country: Netherlands
Manufacturer/Brand: Philips; - Eindhoven; Netherlands
Year: 1962 / 1963
Type: Radio or Tuner
Principle
Super-Heterodyne (Super in general); IF-Freq. 452 kHz
Wave bands
Broadcast plus more than 2 Short Wave bands.
Power type and voltage
Batteries (storage and/or dry) / 6x 1,5 Volt
Loudspeaker/pwr.out
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
from Radiomuseum.org
Model: L4X25T
Material
Leather / canvas / plastic - over other material
Shape
Portable, e.g. Portable Radio (with or without mains > 8 inch).
Dimensions (WHD)
311 x 212 x 101 mm / 12.2 x 8.3 x 4 inch
Notes
Transistoren: AF116, AF117, OC45, 2x OC75, 2x OC74, 3 KW Bereiche
This model was suggested by Iven Müller.
All listed radios etc. from Philips; - Eindhoven; Netherlands
